Big Iron Returns with BigMemory

This is a guest post by Greg Luck Founder and CTO, Ehcache Terracotta Inc. Note: this article contains a bit too much of a product pitch, but the points are still generally valid and useful.

The legendary Moore’s Law, which  states that the number of transistors that can be placed inexpensively  on an integrated circuit doubles approximately every two years, has  held true since 1965. It follows that integrated circuits will continue  to get smaller, with chip fabrication currently at a minuscule 22nm  process (1). Users of big iron hardware, or servers that  are dense in terms of CPU power and memory capacity, benefit from this  trend as their hardware becomes cheaper and more powerful over time.  At some point soon, however, density limits imposed by quantum mechanics  will preclude further density increases.

At the same time, low-cost commodity  hardware influences enterprise architects to scale their applications  horizontally, where processing is spread across clusters of low-cost  commodity servers. These clusters present a new set of challenges for  architects, such as tricky distributed computing problems, added complexity  and increased management costs. However, users of big iron and commodity  servers are on a collision course that’s just now becoming apparent.

Until recently, Moore’s Law resulted  in faster CPUs, but physical constraints—heat dissipation, for example—and  computer requirements force manufacturers to place multiple cores to  single CPU wafers. Increases in memory, however, are unconstrained by  this type of physical requirement. For instance, today you can purchase  standard Von Neumann servers from Oracle, Dell and HP with up to 2TB  of physical RAM and 64 cores. Servers with 32 cores and 512GB of RAM  are certainly more typical, but it’s clear that today’s commodity  servers are now “big iron” in their own right.

This trend begs the question: can you  now avoid the complexity of scaling out over large clusters of computers,  and instead do all your processing on a single, more powerful node?  The answer, in theory, is “Yes”—until you take into account the  problem with large amounts of memory in Java.

What’s So Great About Memory?

The short answer is speed. This is  particularly apparent when you compare the speed of memory access to  other forms of storage. This is also a growing problem as more and more  organizations struggle with the issues around big data. Wikipedia defines  big data as datasets that grow so large they become awkward to work  with using traditional database storage and management tools.

For contrast, the following table shows  the random access times for different storage technologies:

Storage Technology Latency
Registers 1-3ns
CPU L1 Cache 2-8ns
CPU L2 Cache 5-12ns
Memory (RAM) 10-60ns
High-speed network gear 10,000-30,000ns
Solid State Disk (SSD) Drives 70,000-120,000ns
Hard Disk Drives 3,000,000-10,000,000ns

Closer study of this table reveals  a memory hierarchy, with the lowest latency at the top. When used properly,  these technologies can solve the problems associated with big data.  Since most enterprise applications tend to be I/O bound (i.e. they spend  too much time waiting for data stored on disk), it follows that these  applications would benefit greatly from the use of the lower-latency  forms of storage at the top of this hierarchy. Specifically, today’s  enterprise applications would speed up significantly without much modification  if they could replace all disk access with memory usage.

Your browser may not support display of this image.

To drive this point home further, note that with modern network technology,  latencies are at worst around 10,000-30,000ns (2),  with even lower latencies and higher speeds possible. This means that  with the right equipment, accessing memory on other servers over the  network is still much faster than reading from a local hard disk drive.  All of this proves that as an enterprise architect or developer, your  goal should be to use as much memory as possible in your applications.

So What’s the Problem with Java  and Memory?

Although in theory it’s simple to  say, “Use memory instead of disk,” it’s difficult to put this  advice into practice, because the massive growth in available physical  memory is outpacing software technology. Backward-compatibility is the  main reason for this discrepancy. For instance, when the DOS and Windows  platforms moved from 16 to 32-bits (driven mainly by advances in hardware),  software vendors were slow to make use of the additional memory address  space. This move allowed them to remain compatible with older hardware.

More recently, we witnessed the transition  from 32 to 64-bit platforms, and the same problem persisted. For example, a recent survey (3)  of Ehcache users showed that two thirds of developers and architects  running Java applications were doing so with outdated 32-bit operating  systems and/or Java Virtual Machines (JVMs).

To understand why developers and architects  continue to rely on relatively archaic technologies, such as disk-based  storage and 32-bit platforms, we need to understand some limitations  in Java. The original Java language and platform design took into account  the problems developers had when manually managing memory with other  languages. For instance, when memory management goes wrong, developers  experience memory leaks (lack of memory de-allocation) or memory access  violations due to accessing memory that has already been de-allocated  or attempting to de-allocate memory more than once. To relieve developers  of these potential problems, Java implemented automatic memory management  of the Java heap with a garbage collector (GC). When a running program  no longer requires specific objects, the Java garbage collector reclaims  its memory within the Java heap. Memory management is no longer an issue  for Java developers, which results in greater productivity overall.

Your browser may not support display of this image.

Garbage collection works reasonably well, but it becomes increasingly  stressed as the size of the Java heap and numbers of live objects within  it increase. Today, GC works well with an occupied Java heap around  3-4GB in size, which also just happens to be the 32-bit memory limit.

The size limits imposed by Java garbage  collection explain why 64-bit Java use remains a minority despite the  availability of commodity 64-bit CPUs, operating systems and Java for  half a decade. Attempts in Java to consume a heap beyond 3-4GB in size  can result in large garbage collection pauses (where application threads  are stopped so that the GC can reclaim dead objects), unpredictable  application response times and large latencies that can violate your  application’s service level agreements. With large occupied Java heaps,  it’s not uncommon to experience multi-second pauses, often at the  most inopportune moments.

Solving the Java Heap/GC Problem

There’s more than one way to try  to resolve the problems associated with garbage collection and very  large Java heaps. There are alternative garbage collectors to employ,  such as those offered by IBM and Oracle with their real-time products.  These JVMs offer garbage collection over large heaps with controlled,  predictable latency; however, they often come with a price tag and require  changes to source code, making them impractical for most applications.

Additionally, Java SE 1.6 introduced  the Garbage First (G1) collector in an experimental (beta) form, but  it has yet to prove itself reliable and up to the job of large Java  heaps. Another solution is Azul’s Zing Virtual Machine, which is based  on Oracle’s HotSpot JVM. It offers on-demand memory up to 1TB with  “pauseless” operation at the cost of higher CPU utilization, but  it also requires major platform changes for operation.

There are two main reasons why users  need to run large heaps: in-process caching and sessions storage. Both  of these use cases use a map-like API where a framework allocates and  de-allocates resources programmatically with puts and removes, opening  up a way to constrain and solve the garbage collection problem.

BigMemory to the Rescue

Terracotta’s BigMemory is an all-Java  implementation built on Java’s advanced NIO technology. It creates  a cache store in memory but outside the Java heap using Direct Byte  Buffers. By storing data off heap, the garbage collector does not know  about it and therefore does not collect it. Instead, BigMemory responds  to the put and remove requests coming from Ehcache to allocate and free  memory in its managed byte buffer.

This lets you keep the Java heap relatively  small (1-2GB in size), while using the maximum amount of objects within  physical memory. As a result, BigMemory can create caches in memory  that match physical RAM limits (i.e. 2TB today and more in the future),  without the garbage collection penalties that usually come with a Java  heap of that size. By storing your application’s data outside of the  Java heap but within RAM inside your Java process, you get all the benefits  of in-memory storage without the traditional Java costs.

The Benefits of Vertical Scale

With BigMemory, you can take advantage  of all of your server’s available memory without the compromises and  cost typically associated with enterprise Java applications. For instance,  due to the GC penalties we discussed above, many organizations scale  their Java application server and JVM implementations across servers,  and even within single servers. They do this by running multiple JVM/application  server instances, each with small heap sizes, on a single node configured  across either multiple network ports or virtual guest OS instances using  technology such as VMWare.

While this is certainly one solution  to the Java heap problem, there are associated costs with this approach.  Configuring and managing multiple JVM instances, or virtual guest OS  instances, on even a single node takes time and resources. When you  factor in the cost of VMWare licenses, their management infrastructure  and the human resources required to monitor such a deployment, the total  cost-of-ownership for such a hardware/software solution goes up quickly.

By allowing you to run one JVM/application  server instance with a manageable heap and a very large in-memory Enterprise  Ehcache cache, BigMemory eliminates these direct and hidden costs, along  with the nightmares that come with such complexity. There are many positive  results from this approach:

  • One commodity big iron server    node
  • One JVM instance
  • All of your data (>2TB,    potentially) directly accessible in memory
  • Less complexity
  • Fewer servers (real or virtual)    to manage
  • Fewer nodes to potentially    fail, upgrade and deploy to

Ehcache’s Tiered Memory Solution  with BigMemory

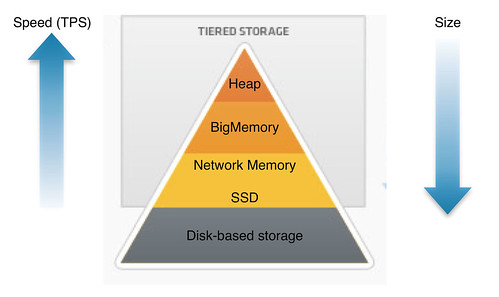

BigMemory and Enterprise Ehcache offer  you the potential to build a tiered model for distributed caches where  needed. For instance, the algorithms employed by Ehcache place your  application’s hot set (the data used most often) in the right location  to provide the best performance and optimize the use of your servers’  resources. Figure  1 illustrates this, with the  fastest storage mediums towards the top and the typically larger and  slower storage mediums towards the bottom.

Your browser may not support display of this image.

Figure 1 – Enterprise Ehcache with BigMemory tiered data storage for performance.

The goal is to place as much of your  data within the top tiers of the pyramid as possible. Fortunately, with  BigMemory, the top tiers of the pyramid can be sized as large as the  physical memory limits of your server, keeping in mind the limits of  the Java heap that we just discussed. For even the most demanding applications  with big data requirements, a single big iron commodity server combined  with BigMemory from Terracotta is all that may be needed.

Though the focus of this article  is vertical scalability, there are still valid reasons for creating  a caching cluster. Even so, you still leverage vertical scalability,  which makes the distributed cache faster with higher density.  Ehcache provides a distributed  cache, which solves the following problems:

  • Horizontal scale out to    multi-terabyte sizes
  • The n-times problem, where    multiple application servers refreshing a cache create added demand    on your underlying data store
  • The boot-strap problem,    where new or restarted nodes need to build a populate their cache when    started
  • Controlled consistency between    the cache instances in each application server node

BigMemory and the Cloud

Cloud vendors such as Amazon, with  its EC2 cloud architecture, typically employ virtualization to an extreme.  All servers run as virtual guest instances and all disk access is over  network-attached storage. This allows the provider to deploy cloud-based  customer solutions across physical servers at will and respond to elastic  compute demands very quickly. However, this often means that even the  network interface card is virtualized and shared across server instances,  resulting in bottlenecks to disk-based storage.

With Amazon’s desire to quadruple the amount of memory made available  to cloud services within its data centers, combined with the high latency  of its shared NIC architecture, intelligent caching is becoming more  important. BigMemory is at the center of this architectural trend, providing  performance increases and latency improvements without sacrificing the  elastic benefits of cloud architecture and without requiring major changes  to deployed network architecture or the software that runs on it.


In the late 1990s, Digital ran ads  for its 64-bit Alpha processor, claiming there hadn’t been a generation  gap that big since the 1960s. They were right, then. Now, more than  a decade later, most enterprises are still trying to figure out how  to efficiently access all the memory available in a 64-bit address space.  With commodity servers expected to grow beyond their current 2TB RAM  offerings and SSD technology continuing to improve and become cheaper,  the generation gap is only going to widen into a chasm.


  1. 22 nanometer    process:
  2. Network latency:,,
  3. Terracotta    user survey:
