How MySpace Tested Their Live Site with 1 Million Concurrent Users

This is a guest post by Dan Bartow, VP of SOASTA, talking about how they pelted MySpace with 1 million concurrent users using 800 EC2 instances. I thought this was an interesting story because: that's a lot of users, it takes big cajones to test your live site like that, and not everything worked out quite as expected. I'd like to thank Dan for taking the time to write and share this article.

In December of 2009  MySpace launched a new wave of streaming music video offerings in New  Zealand, building on the previous success of MySpace music.  These  new features included the ability to watch music videos, search for  artist’s videos, create lists of favorites, and more. The anticipated  load increase from a feature like this on a popular site like MySpace  is huge, and they wanted to test these features before making them live.

If you manage the  infrastructure that sits behind a high traffic application you don’t  want any surprises.  You want to understand your breaking points,  define your capacity thresholds, and know how to react when those thresholds  are exceeded.  Testing the production infrastructure with actual  anticipated load levels is the only way to understand how things will  behave when peak traffic arrives.

For MySpace, the  goal was to test an additional 1 million concurrent users on their live  site stressing the new video features.  The key word here is ‘concurrent’.   Not over the course of an hour or day… 1 million users concurrently  active on the site. It should be noted that 1 million virtual users  are only a portion of what MySpace typically has on the site during  its peaks.  They wanted to supplement the live traffic with test  traffic to get an idea of the overall performance impact of the new  launch on the entire infrastructure.  This requires a massive amount  of load generation capability, which is where cloud computing comes  into play. To do this testing, MySpace worked with SOASTA to use the  cloud as a load generation platform.

Here are the details  of the load that was generated during testing.  All numbers relate  to the test traffic from virtual users and do not include the metrics  for live users:

  • 1 million    concurrent virtual users
  • Test cases    split between searching for and watching music videos, rating videos,    adding videos to favorites, and viewing artist’s channel pages
  • Transfer    rate of 16 gigabits per second
  • 6 terabytes    of data transferred per hour
  • Over 77,000    hits per second, not including live traffic
  • 800 Amazon    EC2 large instances used to generate load (3200 cloud computing cores)

Test Environment  Architecture

SOASTA CloudTest™  manages calling out to cloud providers, in this case Amazon, and provisioning  the servers for testing.  The process for grabbing 800 EC2 instances  took less than 20 minutes.  Calls we made to the Amazon EC2 API  and requests servers in chunks of 25.  In this case, the team was  requesting EC2 Large instances with the following specs to act as load  generators and results collectors:

  • 7.5 GB memory
  • 4 EC2 Compute Units  (2 virtual CPU cores with 2 EC2 Compute Units each)
  • 850 GB instance storage  (2×420 GB plus 10 GB root partition)
  • 64-bit platform
  • Fedora Core 8
  • In addition, there  were 2 EC2 Extra-Large instances to act as the test controller instance  and the results database with the following specs:
  • 15 GB memory
  • 8 EC2 Compute Units  (4 virtual cores with 2 EC2 Compute Units each)
  • 1,690 GB instance  storage (4×420 GB plus 10 GB root partition)
  • 64-bit platform
  • Fedora Core 8
  • PostgreSQL Database

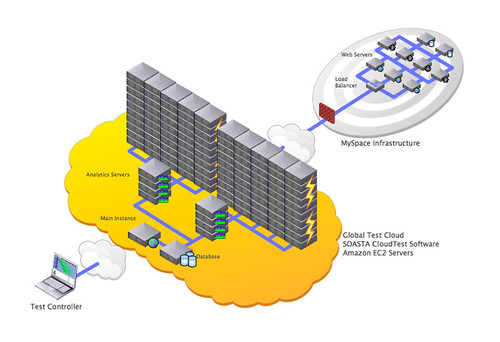

Once it has all of  the servers that it needs for testing it begins doing health checks  on them to ensure that they are responding and stable.  As it finds  dead servers it discards them and requests additional servers to fill  in the gaps.  Provisioning the infrastructure was relatively easy.   The diagram (figure 1.) below shows how the test cloud on EC2 was set  up to push massive amounts of load into MySpace’s datacenters.

figure 1.

While the test is  running, batches of load generators report their performance test metrics  back to a single analytics service.  Each of the analytics services  connect

to the PostgreSQL database  to store the performance data in an aggregated repository.  This  is part of the way that tests of this magnitude can scale to generate  and store so much data – by limiting access to the database to only  the metrics aggregators and scaling out horizontally.


Because scale tends  to break everything, there were a number of challenges encountered throughout  the testing exercise.

The    test was limited to using 800 EC2 instances

SOASTA is one of  the largest consumers of cloud computing resources, routinely using  hundreds of servers at a time across multiple cloud providers to conduct  these massive load tests.  At the time of testing, the team was  requesting the maximum number of EC2 instances that it could provision.   The limitation in available hardware meant that each server needed to  simulate a relatively large number of users.  Each load generator  was simulating between 1,300 and 1,500 users.  This level of load  was about 3x what a typical CloudTest™ load generator would drive,  and it put new levels of stress on the product that took some creative  work by the engineering teams to solve.  Some of the tactics used  to alleviate the strain on the load generators included:

  • Staggering    every virtual user’s requests so that the hits per load generator    were not all firing at once
  • Paring    down the data being collected to only include what was necessary for    performance analysis

A large portion of MySpace assets are served from Akamai, and the testing repeatedly maxed out the service capability of parts of the Akamai infrastructure

CDN’s typically  serve content to site visitors based on their geographic location from  a point of presence closest to them.  If you generate all of the  test traffic from, say, Amazon’s East coast availability zone, then  you are likely going to be hitting only one Akamai point of presence.

Under load, the test  was generating a significant amount of data transfer and connection  traffic towards a handful of Akamai datacenters.  This equated  to more load on those datacenters than what would probably be generated  during typical peaks, but that would not necessarily be unrealistic  given that this feature launch was happening for New Zealand traffic  only.  This stress resulted in new connections being broken or  refused by Akamai at certain load levels, and generating lots of errors  in the test.

This is a common  hurdle that needs to be overcome when generating load against production  sites.  Large-scale production tests need to be designed to take  this into account and accurately stress entire production ecosystems.   This means generating load from multiple geographic locations so that  the traffic is spread out over multiple datacenters. Ultimately, understanding  the capacity of geographic POPs was a valuable takeaway from the test.

Because    of the impact of the additional load, MySpace had to reposition some    of their servers on-the-fly to support the features being tested

During testing the  additional virtual user traffic was stressing some of the MySpace infrastructure  pretty heavily.  MySpace’s operations team was able to grab underutilized  servers from other functional clusters and use them to add capacity  to the video site cluster in a matter of minutes.

Probably the most  amazing thing about this is that MySpace was able to actually do it.   They were able to monitor capacity in real time across the whole infrastructure  and elastically shrink and expand where needed.  People talk about  elastic scalability all of the time and it’s a beautiful thing to  see in practice.

Lessons Learned

  1. For high traffic  websites, testing in production is the only way to get an accurate picture  of capacity and performance.  For large application infrastructures  there are far too many ‘invisible walls’ that can show up if you  only test in a lab and then try to extrapolate.
  2. Elastic scalability  is becoming an increasingly important part of application architectures.   Applications should be built so that critical business processes can  be independently monitored and scaled.  Being able to add capacity  relatively quickly is going to be a key architecture theme in the coming  year and the big players have known this for a long time.  Facebook,  Ebay, Intuit, and many other big web names have evangelized this design  principle.  Keeping things loosely coupled has a whole slew of  benefits that have been advertised before, but capacity and performance  are quickly moving to the front of that list.
  3. Real-time monitoring  is critical.  In order to react to capacity or performance problems,  you need real-time monitoring in place.  This monitoring should  tie in to your key business processes and functional areas, and needs  to be as real time as possible.
