Tagged Architecture - Scaling to 100 Million Users, 1000 Servers, and 5 Billion Page Views

This is a guest post by Johann Schleier-Smith, CTO & co-founder, Tagged.

Five snapshots on how Tagged scaled to more than 1,000 servers

Since 2004, Tagged has grown from a tiny  social experiment to one of the largest social networks, delivering  five billion pages per month to many  millions of members who visit to meet and socialize with new people.   One step at a time, this evolution forced us to evolve our architecture,  eventually arriving at an enormously capable platform.

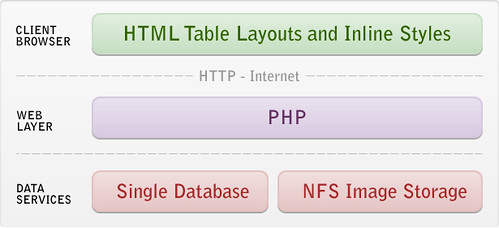

V1:  PHP webapp, 100k users, 15 servers, 2004

Tagged was born in the rapid-prototyping  culture of an incubator that usually launched two new concepts each  year in search of the big winner.  LAMP was the natural choice  for this style of work, which emphasized flexibility and quick turnaround  at a time when Java development was mostly oriented towards development  at large enterprises, Python attracted too few programmers, and Perl  brought the wrong sort.  Also, we knew that Yahoo was a big proponent  of PHP, so it would be possible to scale the business when the need  arose.

Significant experience running MySQL  on previous projects had left me with a love-hate relationship with  the technology.  In the spirit of experimentation we purchased  a few entry-level Oracle licenses for Tagged to see whether that would  work better.

Remarkably, many smaller web sites are  still built just like the original Tagged.  There is beauty in  simplicity, and the two-way division between stateless PHP and stateful  Oracle concentrates the trickiest bits in a single server, while extra  page-rendering compute-power is easy to add.

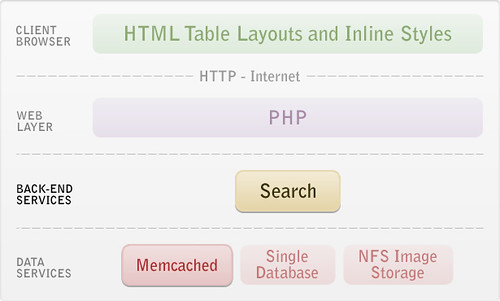

V2:  Cached PHP webapp, 1m users, 20 servers, 2005

Even at eight servers Tagged had more  web traffic than most of us had known. Fortunately,  memcached brought dual advantages, removing over 90% of database reads,  and ensuing that social networking pages packed with diverse information  would render quickly.

From the start, our object caching emphasized  explicit cache updates in favor of simpler techniques such as deleting  invalid keys, or expiring stale data based on timers.  At the cost  of more complex code, this reduces database load substantially and keeps  the site fast, particularly when frequently-updated objects are involved.

Our site continued to evolve in complexity  beyond standard social networking features (friends, profiles, messages)  with the addition of search and social discovery functions.  My team talked me into using Java to build search so that we could benefit  from the Lucene libraries.  I was relieved when we learned to run  it well, and my reluctance born of  early experiences with JDK 1.0 was transformed to enthusiasm for the  platform.

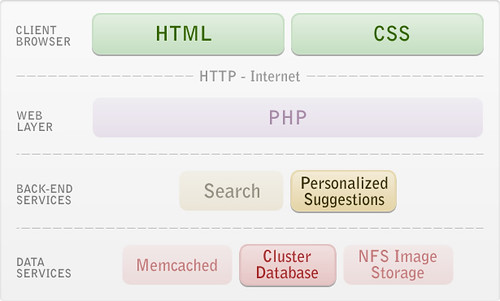

V3: Databases scaling, 10m users, 100 servers, 2006

With 10 million registered users and  thousands online at any moment we approached the challenge that I had  been dreading.  We had just raised capital and were working hard  on growth, but the database was bursting for capacity.  We scrambled  to release one caching or SQL tuning optimization after the other, but  the CPU our servers would time and again trend towards the 100% mark.

The idea of scaling up offered a quick  fix, but the multi-socket server hardware could cost millions, so we  opted for Oracle RAC, which let us use standard networking to  hook up lots of several commodity Linux hosts  to build one big database. When joined with the advantages of the latest  CPUs, Oracle RAC delivered a crucial 20-fold capacity increase over  our first database server, and allowed application developers to stay  focused on building new features.

Java edged further  into the environment when Tagged began to offer personalized people-matching  recommendations by sewing together statistics from a large in-memory  data set, something entirely impractical to do with PHP.

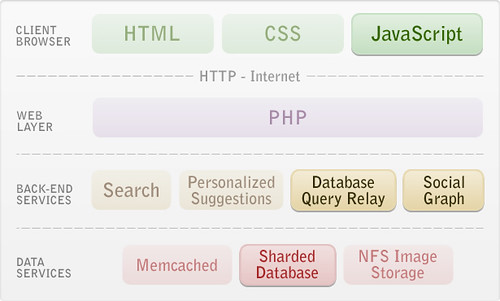

V4:  Database sharding, 50m users, 500 servers, 2007

Sharding the database was without a doubt  the most challenging, but also the most rewarding episode in scaling  Tagged.  By splitting up users among multiple databases we finally  had a design that at all places allowed us to scale just by adding hardware.

Our rule at Tagged is to shard each table  across 64 partitions, and we hold firm to this default  unless there is a very compelling reason to make an exception.   Only certain games that benefit from high-performance protected transactions  between players are vertically partitioned in a separate database.

Sharding existing  data represented a complex transformation across several  terabytes.  At first we attacked features one-at-a-time, relying  on application code to replace joins, but eventually we encountered  a bundle of tables at the core of the application too closely linked  for this approach.  Writing migration software to generate SQL,  we exported, transformed, and reloaded hundreds of millions of rows,  using triggers to track changes on source system and updating targets  incrementally so that the final sync involved an outage of less than  30 minutes.

Having many databases means having  many database connections.  Especially as we added more "social  discovery" functions like Meet Me, our first dating feature, sharding  would have overwhelmed PHP, which lacked Oracle connection pooling.   To cope, we built a Java application that exposes a web service for  running queries, one which also continues to provide a very convenient  monitoring point and allows graceful handling database failures.

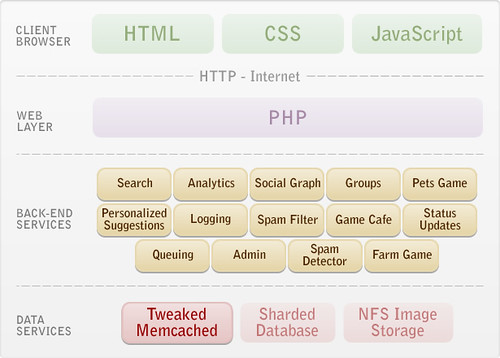

V5: Refinements and extensions, 80m users, 1,000 servers, 2010

Here we jump ahead several years.   With the crux database scalability problems solved, we found it straightforward  to support expansion by adding hardware.  PHP and memcached continued  to serve us well, supporting rapid feature development.

During this time, scalability considerations  shifted towards mitigating failures, addressing the threat of an increasing  number of breakable parts.  Protecting the web layer from problems  at its dependencies was achieved through load balancer health checks  and automatic shutdown of unresponsive services.  We also engineered  core components for resilience, e.g., if memcached becomes overloaded  with connections it must recover immediately once that burden is removed.

Java achieved a much more prominent role,  in part due to increasing acceptance and expertise, but also because  of increasing challenges.  To combat spam and other abuses, our  algorithms take advantage of large shared memory spaces, as well as  compute-intensive techniques.  Social games also benefited from  the performance and concurrency control of Java, but there has been  a cost in complexity; we now need to manage many more distinct pools  of applications than before.

The future

Today, Tagged delivers five billion page  views each month to its millions of members.  Since we've  arrived at scalable design, we can spend most of our energy on creating  features that serve users better.  We have effective tools for  creating scalable software, but we can imagine much better ones, so  current investments focus on software libraries, improving programmer  effectiveness and productivity, and Stig, our upcoming  open source, graph based database project  designed for large scale social networks, real-time services and cloud  applications.
